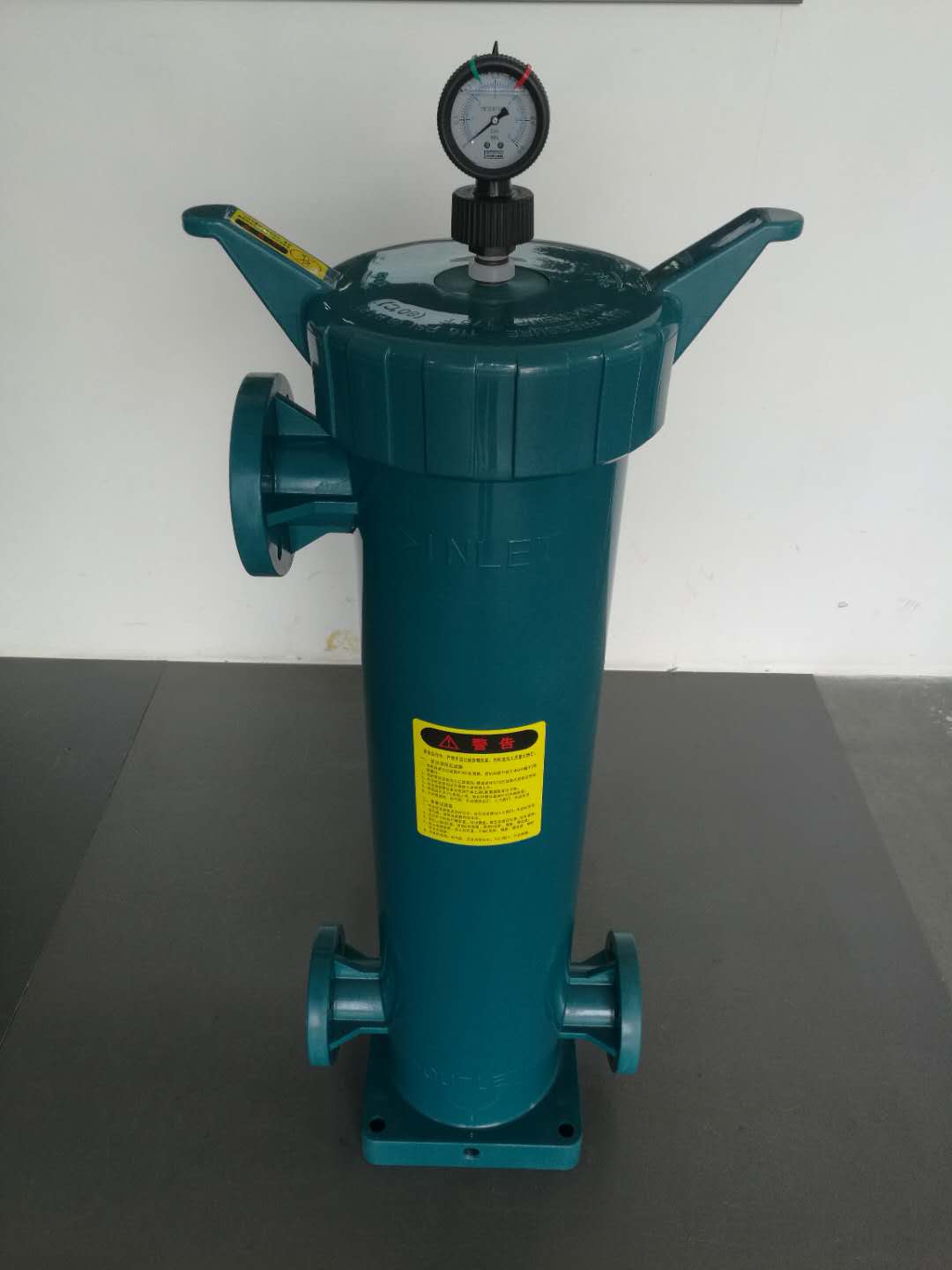

PLPB-02-50-F-C-SS

Name: Polypropylene Bag Filter Vessel, Size #2, Clamp Closure , EPDM Seals, 2" Flanged, Rated for 120 PSI Housing material: PPR Gasket media: EPDM Filter Element per Housing: 1pc x size 2 (7" dia x 32" Length) Inlet/outlet: DN50 ANSI Flange Flow Direction: Side in, side out Maximum Operating Flow Capacity: 40m3/hr Maximum Operating Temperature: 80℃ Design Pressure: 8bar/116 psi Max operation pressure as 25℃(77℉)@8.0Kg/cm2 Packaged: One unit per carton
Brand: Filtersource.com
SKU: PLPB-02-50-F-C-SS
Availability: BackOrder

by Filtersource.com

Polypropylene Bag Filter Vessel, Size #2, Clamp Closure, EPDM Seals, 2" Flanged, Rated for 120 PSIHousing material: PPRGasket media: EPDMFilter Element per Housing: 1pc x size 2 (7" dia x 32" Length)Inlet/outlet: DN50 ANSI FlangeFlow Direction: Side in, side outMaximum Operating Flow Capacity: 40m3/hrMaximum Operating Temperature: 80℃Design Pressure: 8bar/116 psiMax operation pressure as 25℃(77℉)@8.0Kg/cm2Packaged: One unit per carton

View all PLPB Series Bag Housings products →

Quantity

Material

Polypropylene

Size

Pipe Size

2" Flange

Outlet Style

Universal

Gasket Material

EPDM

Brand

Filtersource.com

Product Line

PLPB Series Bag Housings

PLPB-02-50-F-C-SS

Product information

Specifications
