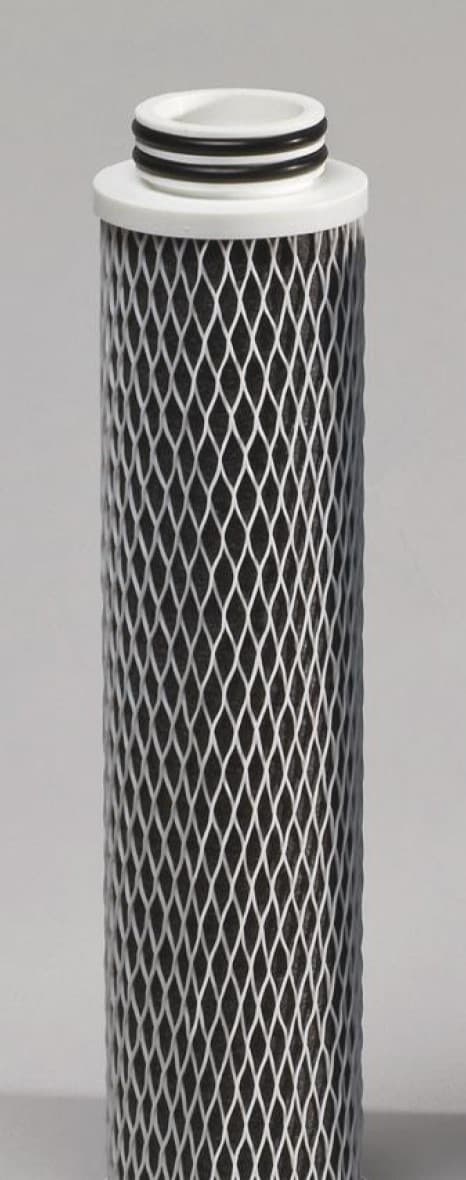

The DWCC and DWCF Series of cartridge filters provide reduction of chlorine, bad taste and odor, organics, oil, and a wide variety of other contaminants. The DWCC cartridges, identified by the white outer netting, have a filter medium comprised of activated carbon impregnated cellulosic paper and are an economical solution for potable water and other liquids compatible with cellulose. The DWCF cartridges, identified by the yellow outer netting, contain a coconut carbon impregnated polyester medium and offer cellulose-free compatibility with a wide range of liquids such as plating solutions. Both contain a rigid polypropylene core for strength and stability. DWC Series cartridges also provide fine sediment filtration to 5 microns and are available in lengths to 40" and three diameters. Plastisol end caps are standard with optional end fittings available to match a variety of housings.
Applications
- Potable water
- Polishing filters
- Plating solutions
- Industrial processes
- Food and beverage
- Odor and taste reduction
- Fine sediment
Benefits
- Improves taste and odor of water
- Reduction of a variety of impurities
- Removal of sand, silt and particles to 5Pm
- Wide range of sizes and end fittings
- Low pressure drop compared to carbon blocks
- Fast lead times
Specifications
- Media: DWCC (Activated Charcoal Carbon Cellulose with Polyester Backing) or DWCF (Activated Coconut Shell Carbon Impregnated Polyester)
- Micron Rating: 5
- Lengths: 5", 9.75", 10", 19.5", 20", 29.25", 30", 40"
- Outside Diameters: 2.5", 2.75", 4.5"
- End Configurations: Standard plastisol cap, 222/disc, 222/fin, 226/disc, 226/fin
- O-rings: Buna, Silicone, EPDM, Fluoroelastomer
Used by real customers in the following industries: Industrial Manufacturing, Chemicals, Polymers, Inks, Paint & Coatings, Service Provider, Food & Beverage, Aerospace, Municipal Water
