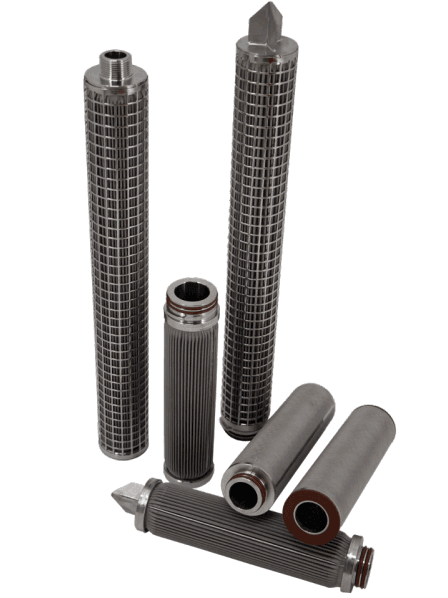

GSS-Series Pleated Stainless Steel Cartridges
These pleated stainless steel filter elements offer an excellent filtration solution for applications with extreme thermal ranges and differential pressures while providing excellent contaminant holding capacity and efficiency. The GSS-Series elements are constructed entirely with 316L stainless steel, which not only provides excellent strength and resistance in extreme applications, but allows for easier and repeated cleaning cycles without compromising product integrity. The GSS-Series pleated elements are available in two configurations to accommodate a variety of applications: Pleated Woven Mesh (GSSP) and Sintered Pleated Woven (GSSSP).
Features
- Constructed entirely with 316L stainless steel
- Available in two pleated configurations
- Particulate retention up to 99.0%
Specifications
- Material: 316L SS
- Micron Ratings: 1, 2, 5, 10, 20, 50, 100, 150, 200
- Lengths: 10", 20", 30", 40"
- Outside Diameter: 2.5"
- Various end configurations available
- O-rings/Gaskets: Buna, EPDM, Silicon, Viton
- Options: Cage, No Cage
Used by real customers in the following industries: Chemicals, Polymers, Inks, Paint & Coatings
