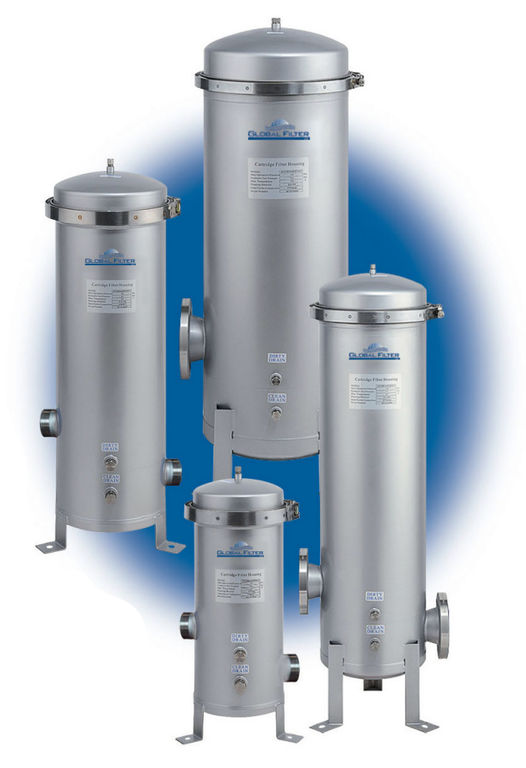

GTCHB Series Multi-Cartridge Band-Clamp Housings

GTCHB Series Multi-Cartridge Vessels are designed for industrial and commercial applications. Vessels are constructed of 304 or 316 stainless steel and accept DOE, 222/FLAT and 222/FIN end cartridges in 10, 20, 30 & 40 inch lengths.

Features

1. Easy-access heavy-duty band-clamp closure
2. Heavy-duty welded mounting/support legs
3. Single o-ring design (Buna-N standard)
4. Universal seal cups and compression plates allow vessels to accept DOE, 222/FLAT or 222/FIN cartridges
5. Poly-coat finish (exterior only)
6. 316 stainless steel cap/spring assemblies and v-posts
7. 150 PSI pressure rating

Specifications

1. Materials: 304SS or 316SS
2. Lengths: 10", 20", 30", 40"
3. Inlet/Outlet Sizes: 2", 3", 4" (MNPT or RF Flange)
