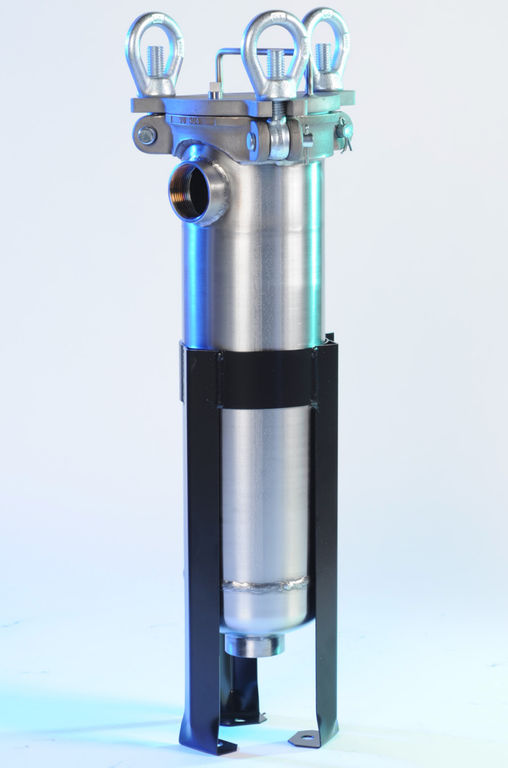

Model 6 Single Bag Housing

Model 6 strainer/filter housings are made in 3 sizes and can serve as basket strainers (for particle retention down to 74 micron size) or as bag filters (for particle retention down to 1 micron size). In all cases, covers are easily removed without special tools.

Features

1. Low pressure drops
2. Permanently-piped housings
3. Covers are O-ring sealed
4. Easy to clean!
5. Adjustable-height legs
6. Three basket depths: 12, 18, or 30 inches (nominal)

Specifications

1. Sizes: #7 (12"), #8 (18"), #9 (30")
2. Materials: 304SS, 316SS, Aluminum, Carbon Steel
3. Pipe Size: 1", 1-1/4", 1-1/2", 2", 3" (NPT and Flange)
4. Outlet Style, Bottom, Side, Side Bottom
5. Seals: Buna, Viton, EPR, Teflon encapsulated Viton
