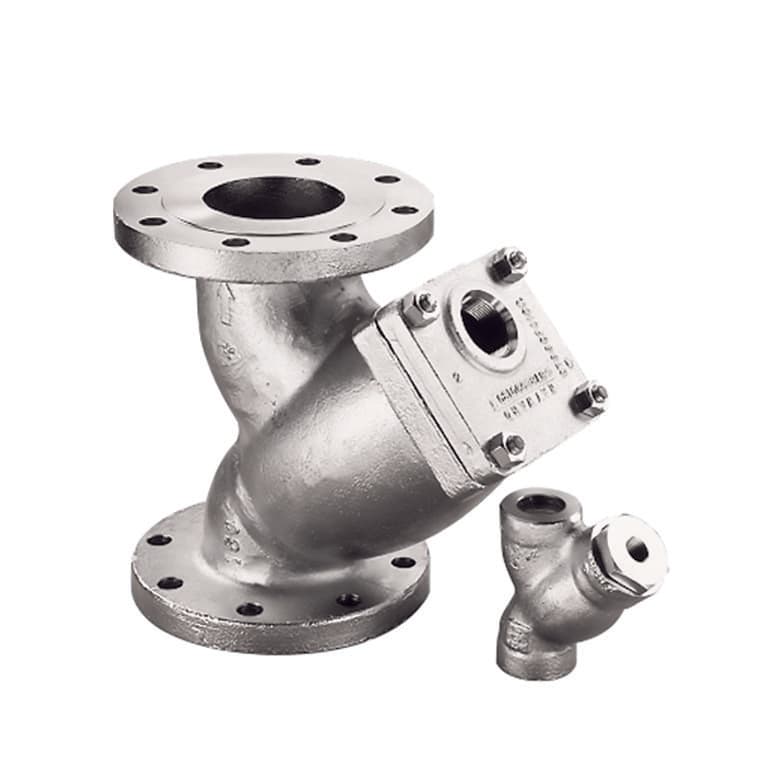

Model 85 Y-Strainer

Model 85 Y strainers are engineered to withstand aggressive industrial and commercial applications. Y strainers protect downstream process system components by mechanically removing unwanted solids from liquid, gas, or steam lines by means of a perforated or wire mesh straining element. To protect against any bypass, the Model 85 Y strainers are manufactured with a precision-machined screen seat on the body of the strainer and high-quality stainless steel screens fabricated to fit the strainer body perfectly. For cost-effective straining solutions, Y strainers work well in applications in which the amount of material to be removed from the flow is relatively small, resulting in long intervals between screen cleanings. The strainer screen is manually cleaned by shutting down the line and removing the strainer cap.

Features

1. Compact design
2. Bolted or threaded covers
3. Standard stainless steel screens
4. Horizontal or vertical installation

Specifications

1. Materials: Carbon Steel, Stainless Steel
2. Pipe Sizes: 1-1/4" to 10"
3. End Connections: Threaded, Flanged or Socket Weld
