Filter Housings for High Flow Applications

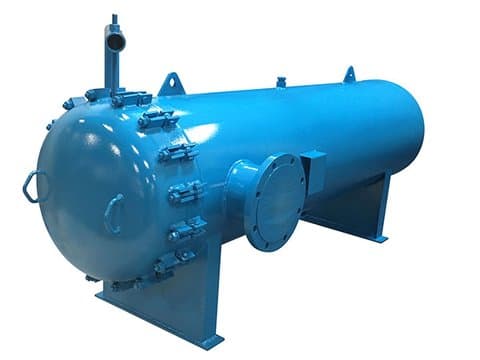

High Flow Series filter housings are designed to accept High Flow Series large geometry filter elements. Available in both vertical and horizontal orientations, the Single Cartridge High Flow housings accept 1 filter element. The single round is also available in a tipped horizontal design that allows easier removal without the need for a platform and readily drains from back of vessel to eliminate fluid spills.
Features
- Industrial grade housings available in 304, 316 and carbon steel
- ASME U code available
- Designed for 1 filter per housing for flows up to 3500 GPM* (Actual flow rate may be lower with vessel sizing based on fluid dirt loads, nature of contaminant, viscosity, micron rating and temperature)
- 150 psig designs
- Accepts 20”, 40”and 60” High Flow cartridges
- Vertical and horizontal designs offered
- Hold down plate prevents elements from unseating due to back pressure
- Filter removal tool provided to facilitate element changeout
- Swing bolts on 150 psig design
- Equipped with 1” vent and 2” drain (1” drain on tipped horizontal style)
Specifications
- Materials: 304SS, 316SS, or Carbon Steel
- Lengths: 20", 40", 60"
- Inlet/Outlet Sizes: 4", 6", 8", 12"
- Orientation: Vertical, Horizontal, Tipped Horizontal
- Gaskets: Buna-N, EPDM, Silicone, Viton
