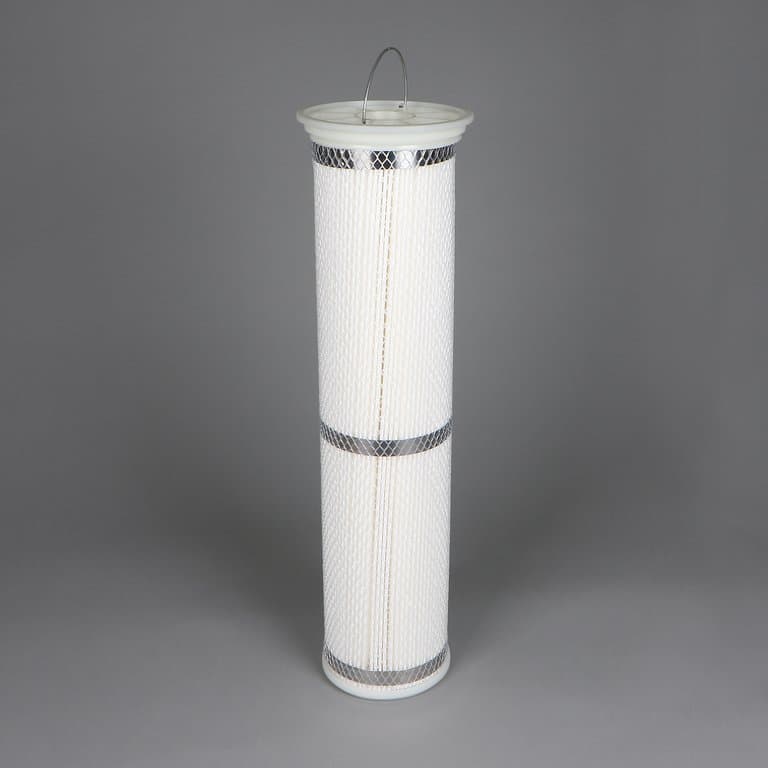

600 Series Deep Pleated Liquid Cartridge Filter

The 600 Deep Pleat Series has a removal efficiency of 99% and is available in filtration ranges from 1 to 40 microns. Due to the unique design of this pleated cartridge, it provides 35sq. ft. of?filter surface area which will fit inside most Size #1 & #2 strainer baskets. Dirt holding capacity and efficiency are maximized by pleating several diff?erent?filter medias together in a single pleat element. A single 600 Deep Pleat Series cartridge is designed to replace up to 7 standard 500 Series or 20 standard 100 Series bags. The 600 Deep Pleat Series cartridge is designed to fit into existing baskets and provide an o-ring side-seal without any housing modifications. It is available in different filter media to meet chemical compatibility and industry standards. To achieve optimum performance while minimizing filtration costs, it is recommended that the ?ow rate be at 30 GPM and pressure at a maximum of 25 PSID.

Specifications

1. Material: Polypropylene or Polyester
2. Micron Ratings: 1, 5, 10, 20, 40
3. Lengths: 12", 26", 52"
4. Cap Style: Small Cap (6-5/8" D), Big Cap (7-1/8" D)
